حساس قارئ بصمة


45ر.س
رمز المنتج: ESN-AS608 القسم: الوسوم: , ,

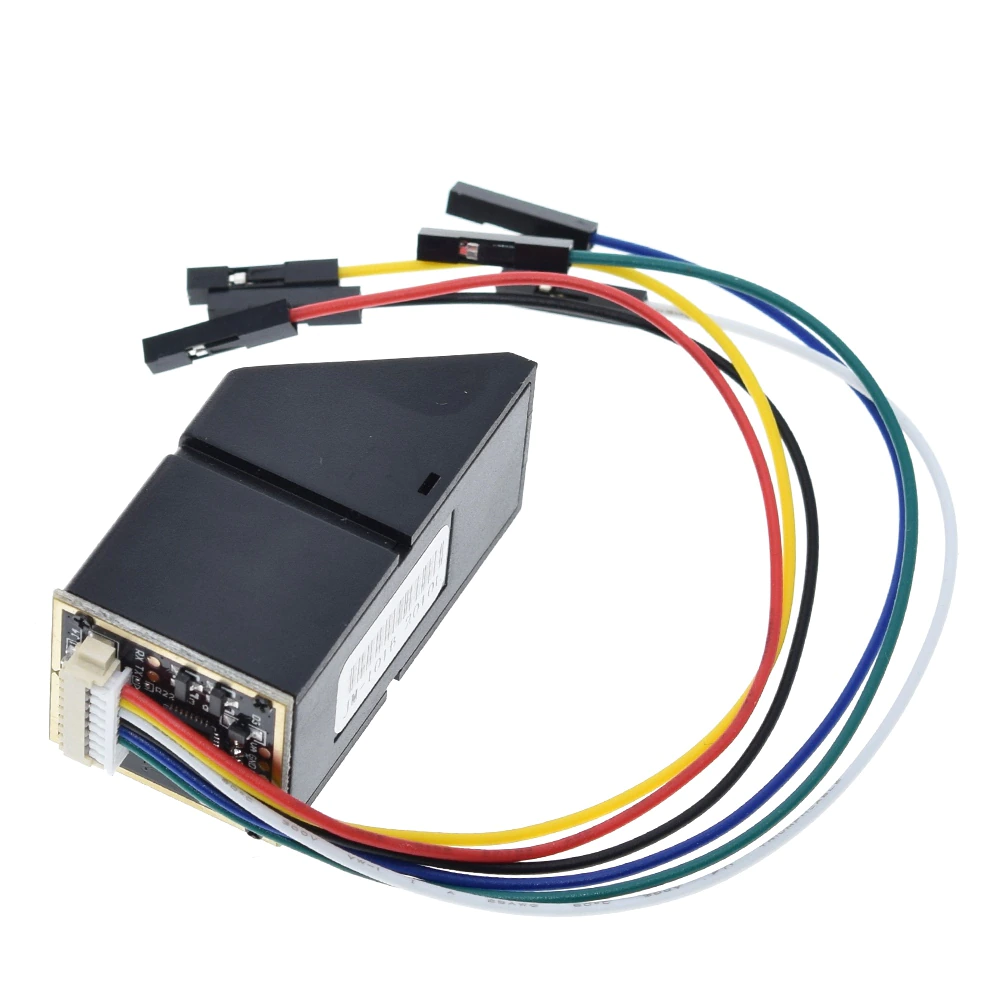

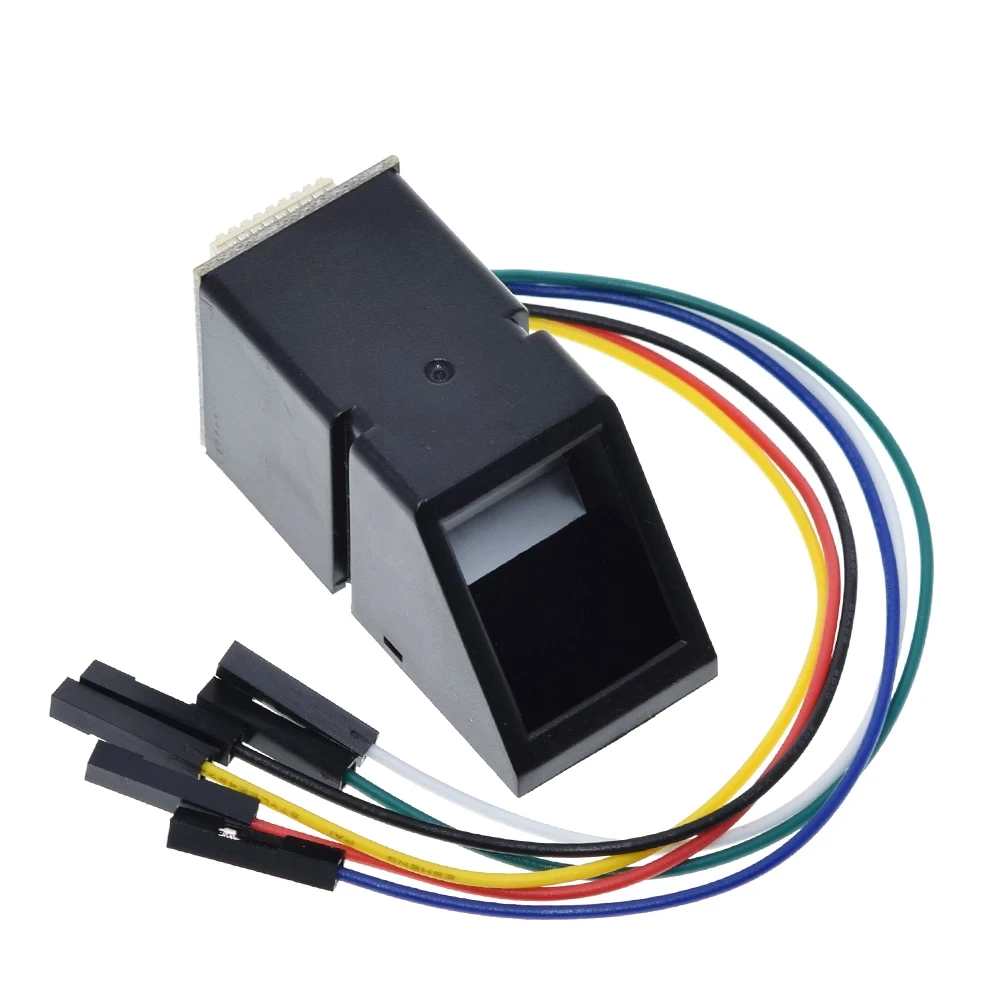

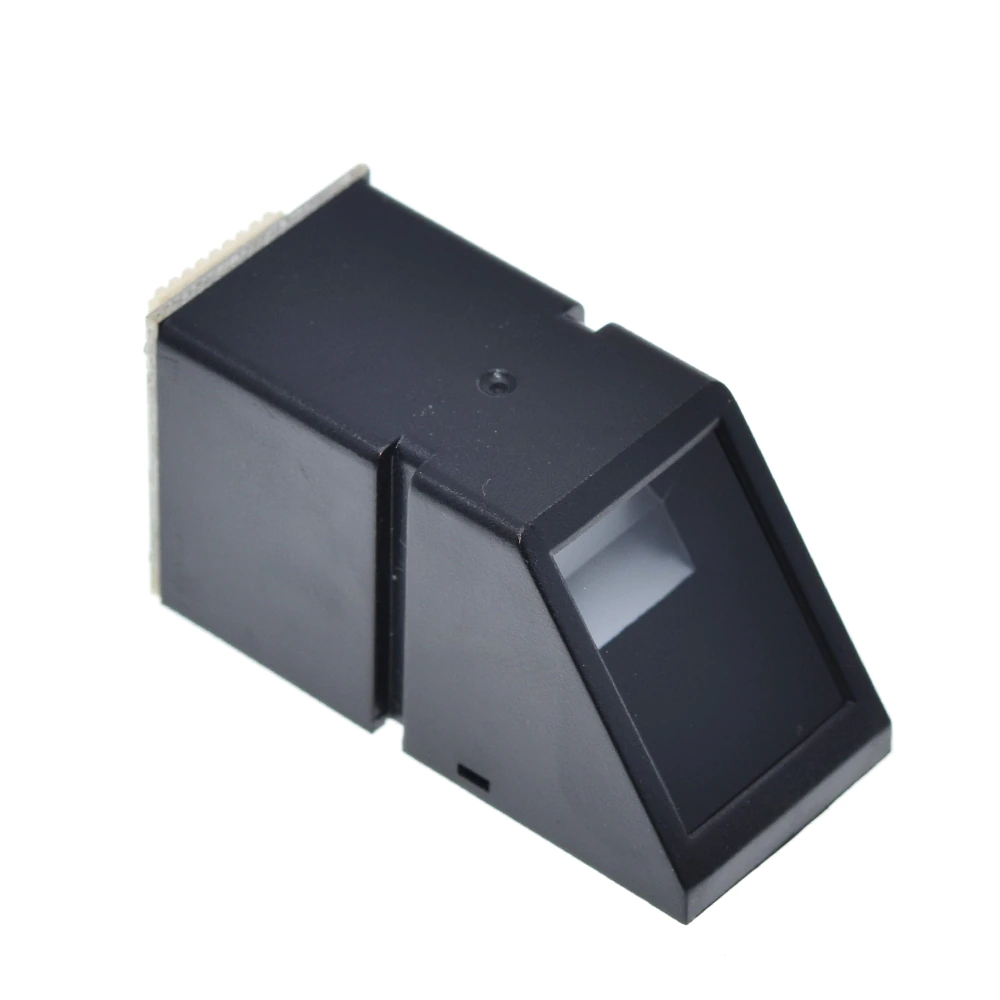

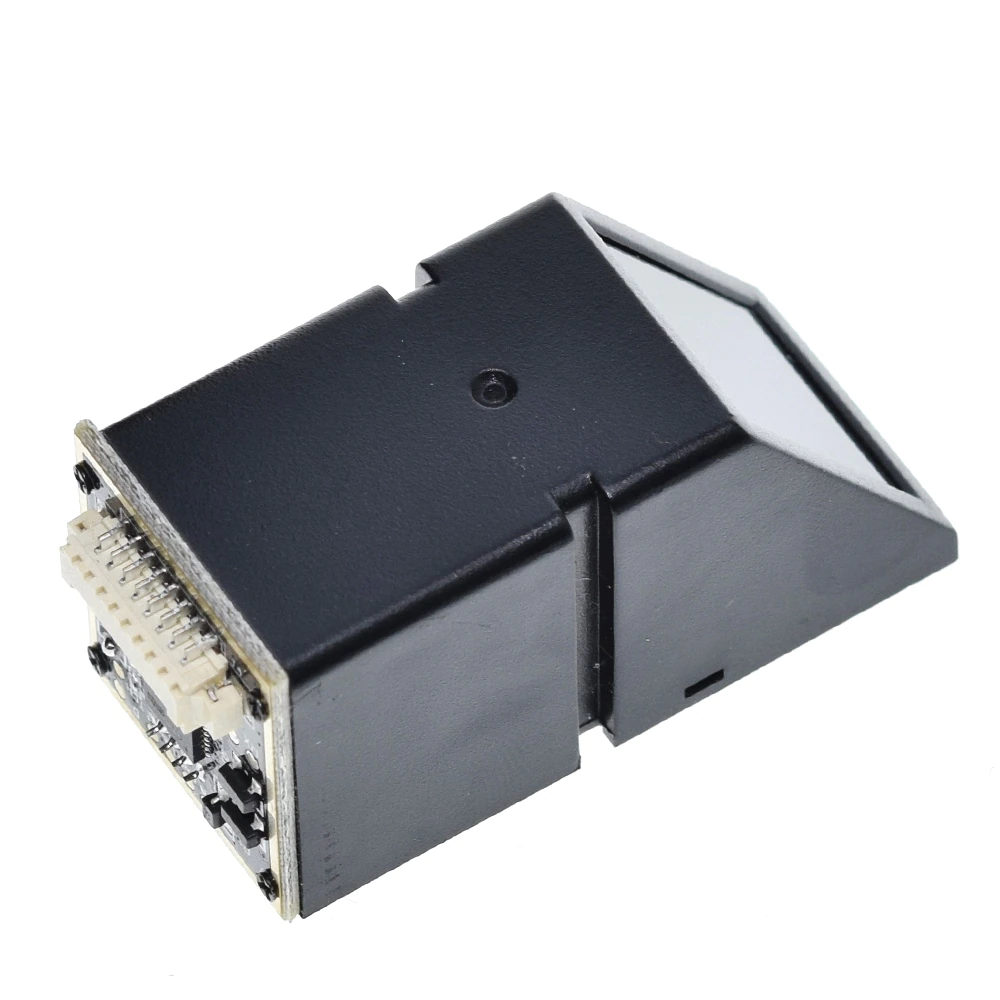

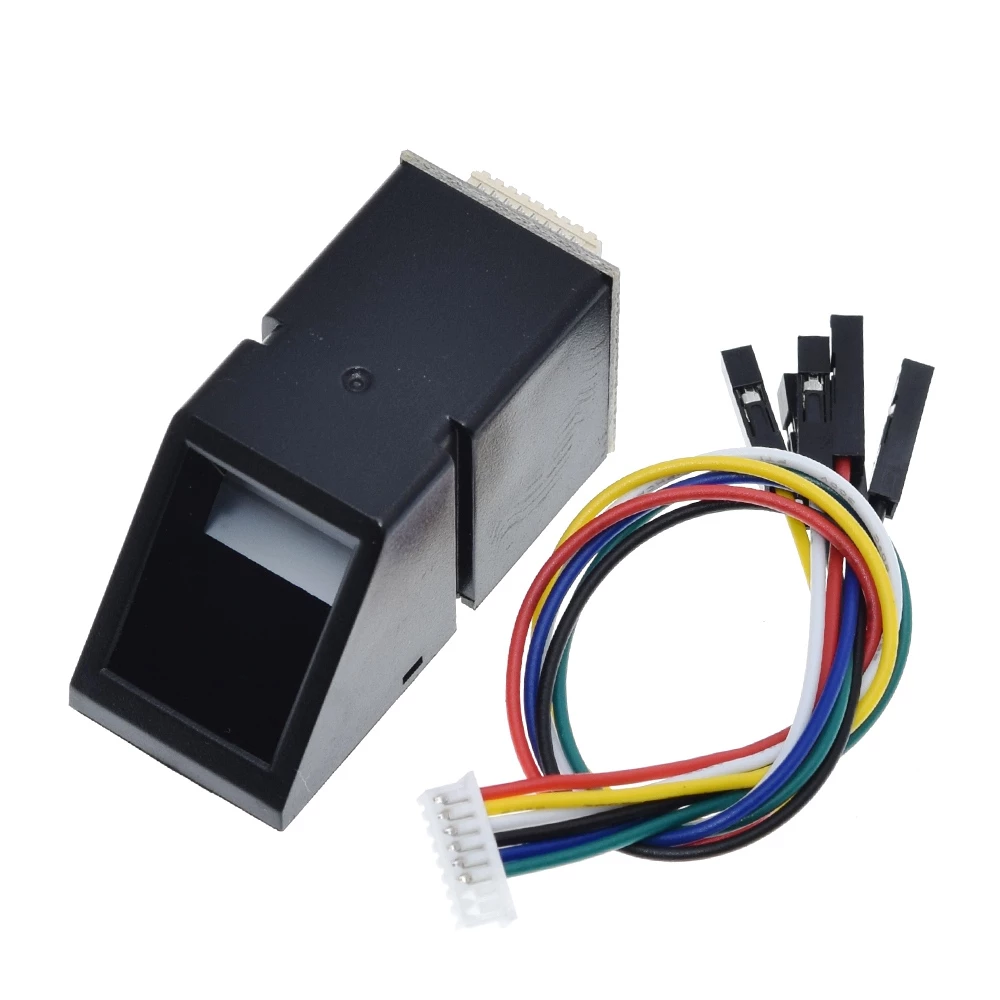

AS608 Fingerprint Reader Sensor Module Optical Fingerprint Fingerprint Module For Arduino Locks Serial Communication Interface

5 متوفر في المخزون

الوصف

AS608 Fingerprint Reader Sensor Module Optical Fingerprint Fingerprint Module For Arduino Locks Serial Communication Interface.

Parameters

Resolution: 500dpi

Supply Current: <60mA

Supply Voltage: 3.3V

Fingerprint Image Entry Time: <1.0 seconds

Peak Current: <60mA

Window Area: 15.3×18.2mm

Communication Interface: USB/UART

How The Module Works

1. Fingerprint Features

The fingerprint algorithm extracts features from the acquired fingerprint image and represents the fingerprint information. The storage, comparison and search of fingerprints are all done by operating fingerprint features.

2. Fingerprint Processing

Fingerprint processing includes two process: fingerprint registration process and fingerprint matching process (in which fingerprint matching is divided into fingerprint comparison (1:1) and fingerprint search (1:N) two ways).

When the fingerprint is registered, two fingerprints are entered for each fingerprint, and the input image is processed twice. The synthesis module is stored in the module. When the fingerprint is matched, the fingerprint sensor is used to input the fingerprint image to be verified and processed, and then it is compared with the fingerprint module in the module (if it is matched with a module specified in the module, it is called fingerprint comparison mode, i.e. 1:1 mode. If matching with multiple modules is called fingerprint search, i.e. 1:N mode, the module gives the matching result (pass or fail).

معلومات إضافية

الوزن 0.01955 kg

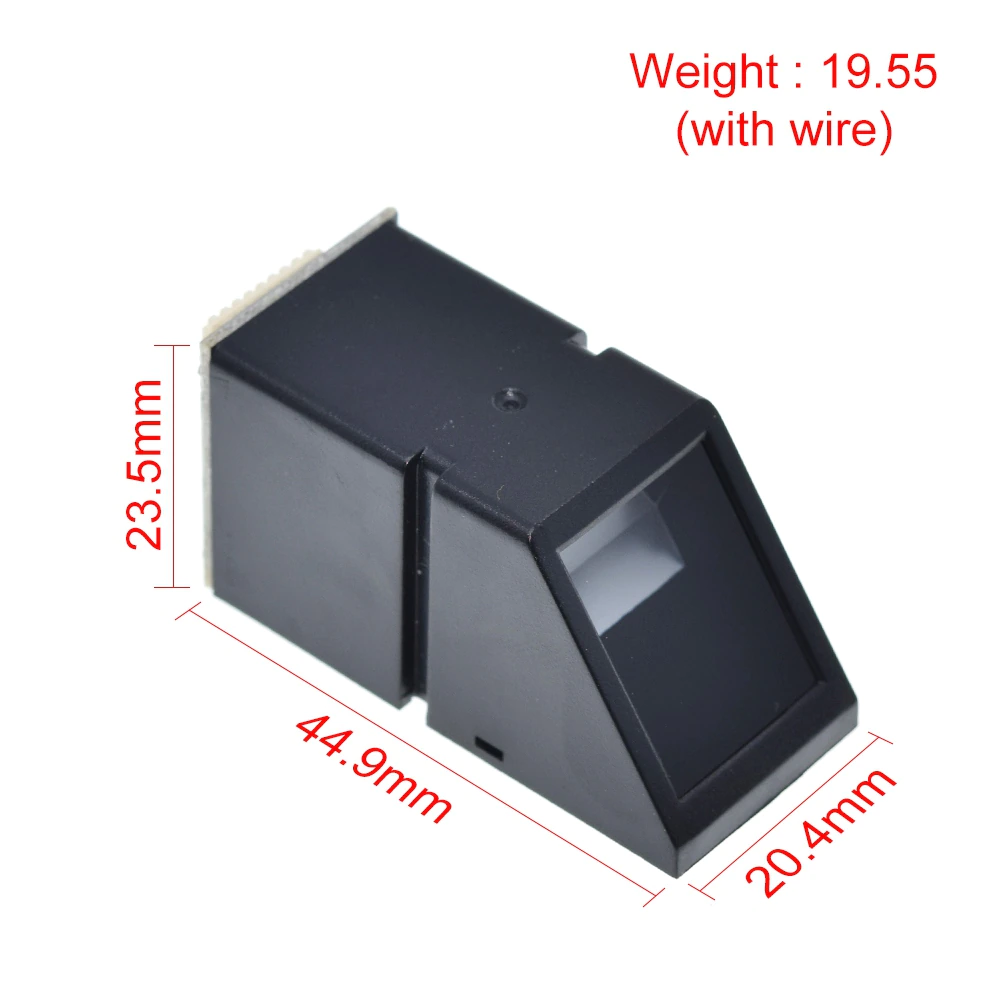

الأبعاد 4.49 × 2.04 × 2.35 cm
