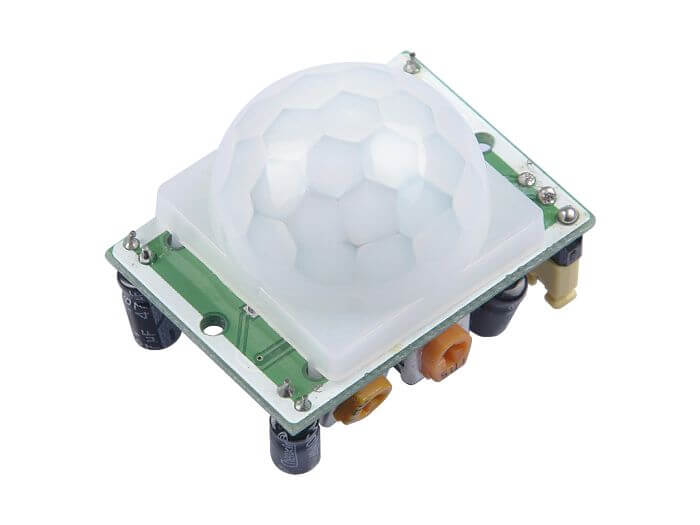

حساس حركة PIR


30ر.س
رمز المنتج: ESN-113990020 الأقسام: , , الوسوم: , , ,

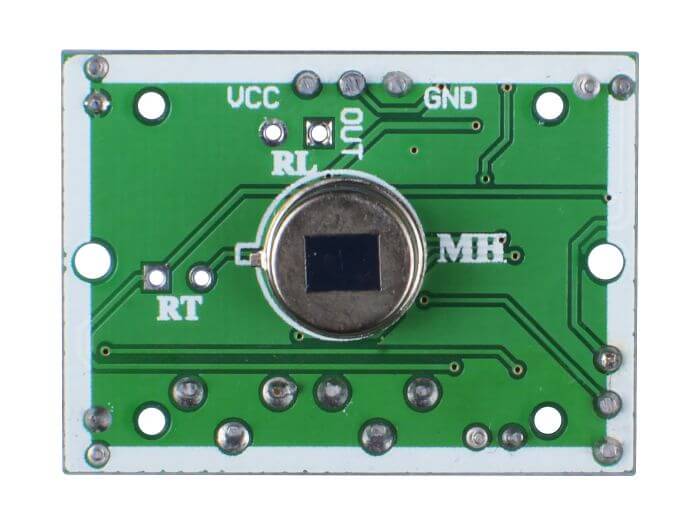

It adopts LHI788 probe, which has high sensitivity, high reliability, low voltage working mode and low power consumption.

25 متوفر في المخزون

الوصف

Introduction

This is a simple to use motion sensor. Power it up and wait 1-2 seconds for the sensor to get a snapshot of the still room. If anything moves after that period, the ‘alarm’ pin will go low.



Specification

  • Type: Digital
  • Supply Voltage: 3~5V
  • Current: 50μA
  • Working temperature: 0℃~+70℃
  • Output level(HIGH): 4V
  • Output level(LOW): 0.4V
  • Detect angle: 110 Degree
  • Detect distance: 7 meters
  • Size: 28mm×36mm
  • Weight: 25g

Application

  • Automatic door
  • Infrared burglar alarm
  • The highway vehicle traffic counter



Pinout



Num Label
1 Digital Signal Out
2 VCC
3 GND

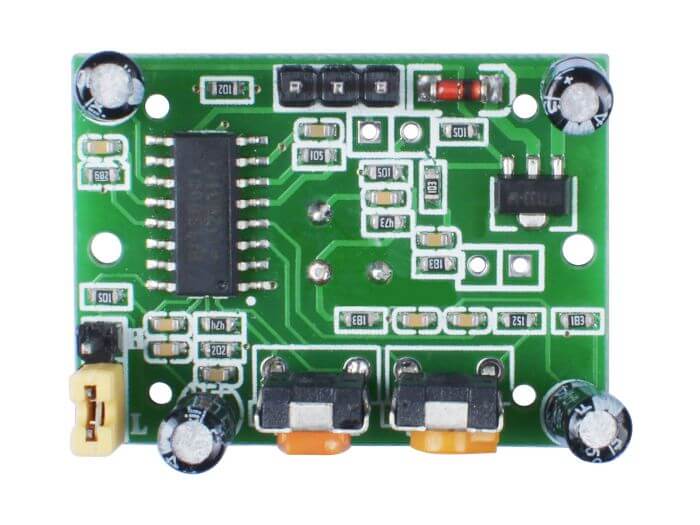

4 Jumper Selection: Repeatable trigger and unrepeatable trigger selection.
H: Repeatable trigger
L: Unrepeatable trigger

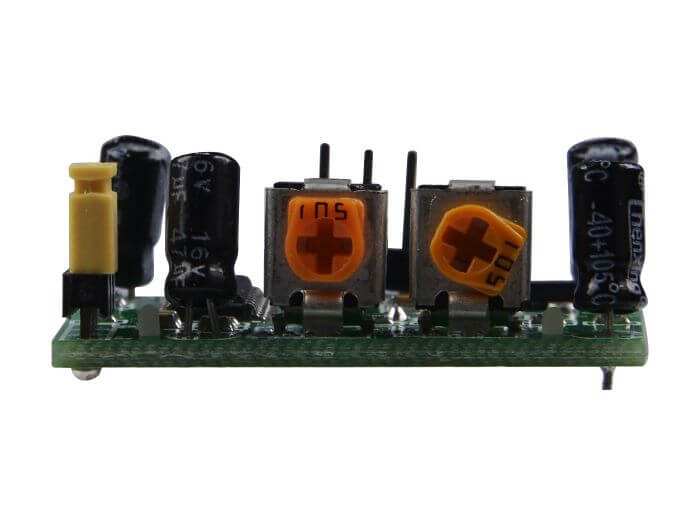

5 Potentiometer: To adjust trigger latency from 0.5s to 50s.



Connection Diagram

















Sample Code

const int buttonPin = 2;

const int ledPin =  13;

void setup() {

pinMode(ledPin, OUTPUT);

pinMode(buttonPin, INPUT);

}

void loop()

{

if (digitalRead(buttonPin) == HIGH)

{

digitalWrite(ledPin, HIGH);

}

else {

digitalWrite(ledPin, LOW);

}

}

Result

When sensors detect people closed, the light will be lighted.
